تفاصيل المنتج:
شروط الدفع والشحن:
|
| قابس الذكور OBD2: | المعيار | Pins of OBD2 male plug: | copper, nickel-plated or gold-plated |
|---|---|---|---|
| Pins at the back: | straight | Housing material: | PA66 |
| درجة حرارة العمل: | −25 ℃ ~ +100 ℃ | material of the enclosure: | ABS |
| إبراز: | obd enclosure,obd2 custom enclosures,obd plastic housing,obd2 custom enclosures,obd plastic housing |
||

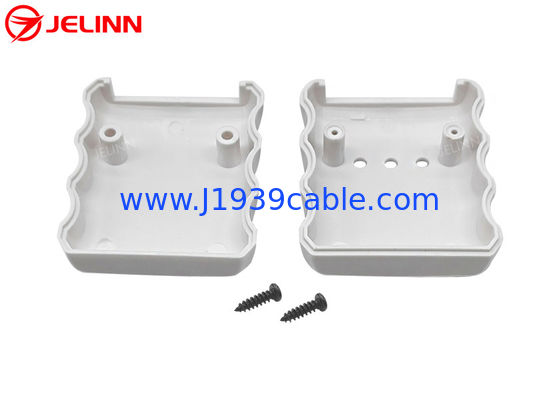

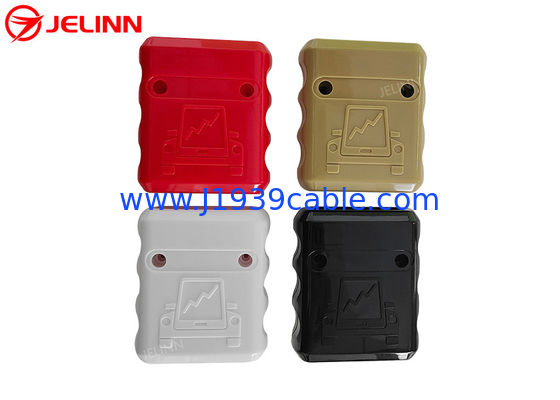

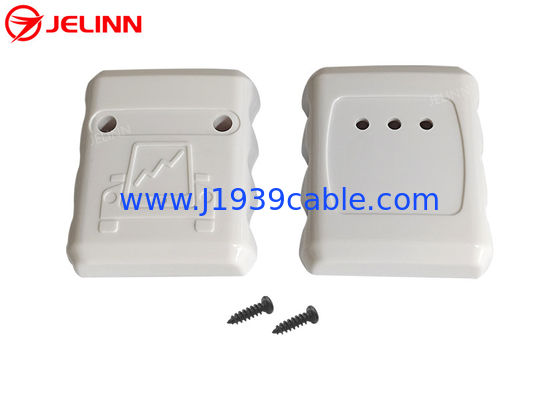

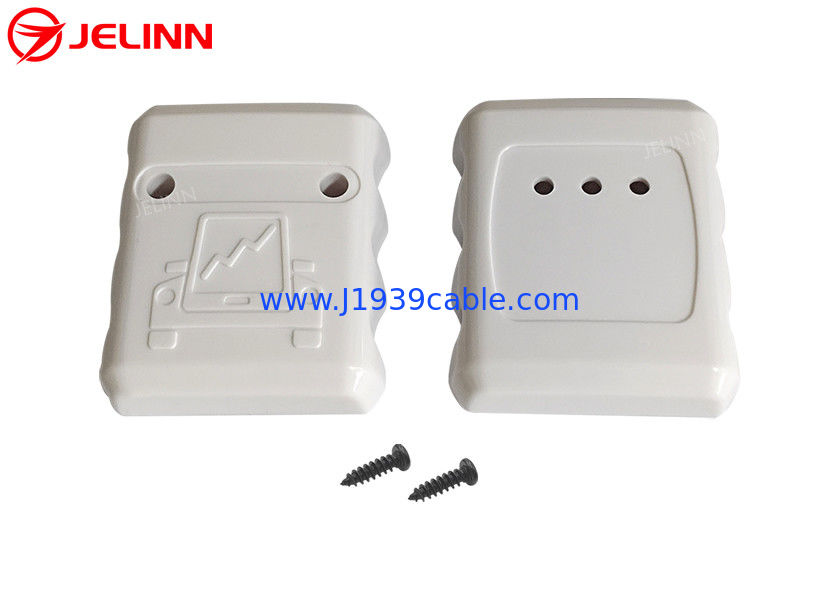

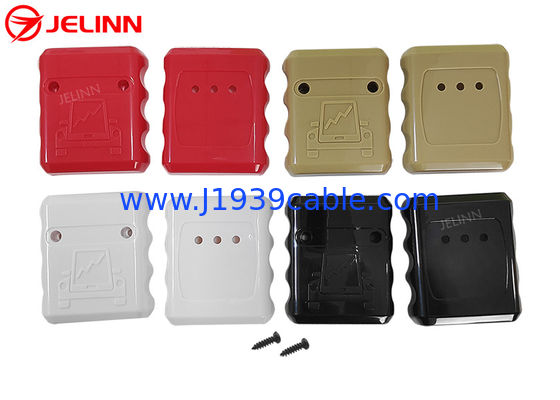

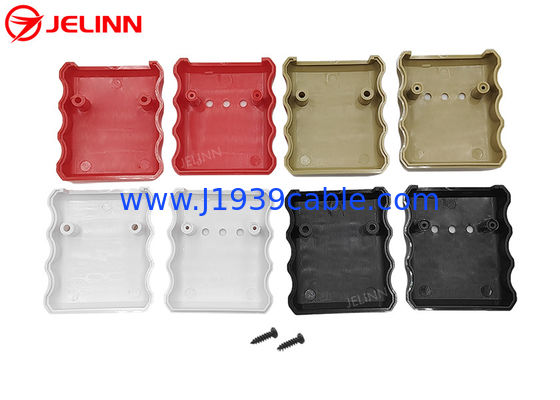

Custom 16 Pin OBD 2 OBD2 Plastic Housing Enclosure
Specification
| OBD2 male plug | standard |
| Pins of OBD2 male plug | copper, nickel-plated or gold-plated |
| Pins at the back | straight |
| Number of pins | 16 |
| Material of OBD2 male plug | PA66 |
| Material of OBD2 enclosure | ABS |
| Surface treatment of the OBD2 enclosure | painting |
| Dimension of OBD2 enclosure | 50*39*22 mm |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +100℃ |
| Warranty | 1 year |
We made the plastic mold of the OBD2 OBDII enclosure and the OBD2 OBDII male plug by ourselves because we have a full set of machines and equipments and an excellent team of staff for making plastic molds. We also have injection molding machines which can manufacture these OBD2 OBDII enclosures and the OBD2 OBDII male plugs according to the mold.
This OBD2 OBDII enclosure is with snaps and press-fit style. Press the top and the bottom of the OBD2 OBDII enclosure to make them attach to each other.
Application
This OBD2 OBDII enclosure can be used to assemble telematics devices, M2M devices, IoV (Internet of Vehicles) devices, fleet management devices, ELM327 diagnostic devices, OBD2 CAN programming tools, Nitro OBD2 tuning devices, ECU tuning tools and car performance tuning tools.
Sending an inquiry
If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
